CompanyProfile
- Dimension
DN50-DN6000 Expansion Joint - Pressure
Full Vacuum to 150 bar(g) - Materials
Stainless Steel, Duplex, Nickel Alloys, Titanium Alloys - Design Codes
EJMA, ASME, EN 14917 - Types
STANDARD and SPECIAL Expansion Joint (Axial, Lateral, Angular Expansion Joint with FCCU, CLAM-SHELL, Inline & Elbow Pressure Balance, Externally Pressurised, Reinforced, Rectangular Expansion Joint including single-double miter, round and camera corner)
SYSTEM METALFLEX INDIA PRIVATE LIMITED is a subsidiary of FUTURA Engineering Private Limited which was incorporated in 1989. With experience of more than 30 years in various sectors of Die & Moulds for Tiles, Tableware, Plastic, Cement, Forging, Aerospace, Welding Automation & Fixtures, Rubber, Wear Plates and Special Purpose Machineries, a team lead by Mr. Mohan V. Nair (Founder & MD) delightful to commence the Expansion Joint division in Chhatral.
SYSTEMFLEX is a designer and manufacturer of the most advanced and customised Expansion Joint. SYSTEMFLEX provide high-quality customised Expansion Bellows. The most technologically advanced manufacturing equipment is used in our facilities to ensure that the quality standards demanded by our clients will be fulfilled. SYSTEMFLEX ‘s future lies in shaping significantly nearer collective associations with our clients, offering arrangements that can upgrade results while diminishing expenses.
AdvancedFacilities
SYSTEMFLEX is equipped with Large High End Double Column Multi-face CNC Milling machines. The CNC milling machines with working table size of 400 x 600 up-to 2,500 x 4,000 mm & CNC surface grinding to manufacture high quality components/parts.

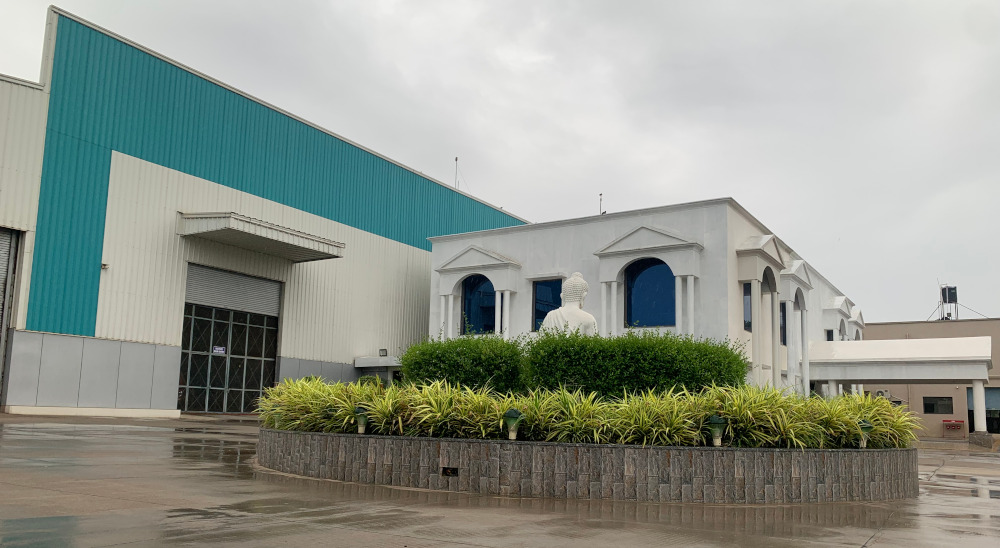

- Area
1,46,000 sq.ft. (Unit-I and Unit-II) - CNC-VMC Machines (5 Nos.)
Table Size: From 600 x 400 to 2,200 x 880 MM

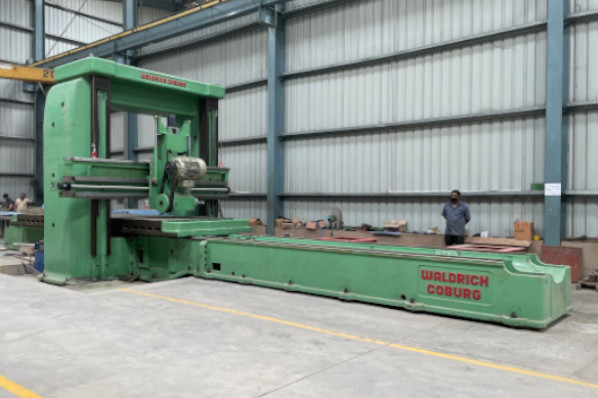

Make: Jyoti-Huron, Doosan, Bharat Fritz Werner - CNC Double Column Machines (3 Nos.)
Table Size: From 1,500 x 2,200 to 3,200 x 2,400 MM

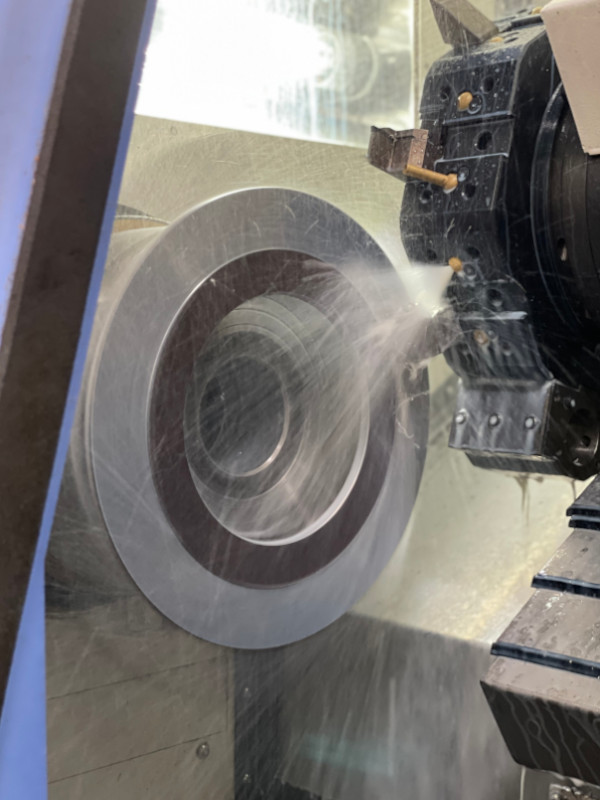

Make: Jyoti-Huron - CNC Turning Center
Dia.: 200 x 500 mm
Make: Jyoti Automation - CNC Surface Grinding Machine
300 x 1,000 mm
Make: FUTURA - Surface Grinding Machine (19 Nos.)
300 x 500 mm to 2,200 x 6,000 mm
Make: German Imported & Indian - Rotary Surface Grinding
Dia.: 1,500 MM
Make: German Imported - Conventional Vertical Milling (5 Nos.)
300 x 1,000 to 1,800 x 4,000 mm
Make: Imported & Indian - Conventional Horizontal Milling (6 Nos.)
700 x 1,500 to 2,000 x 4,000 mm
Make: Imported & Indian - Radial Drilling Machine (BR25 to BR65) (4 Nos.)
Indian make - Hydraulic Press
Tonnage: From 250T to 1200T
Make: Imported & FUTURA - Overhead Cranes (24 Nos.)
1,000 Kgs to 10,000 Kgs - Welding Automation

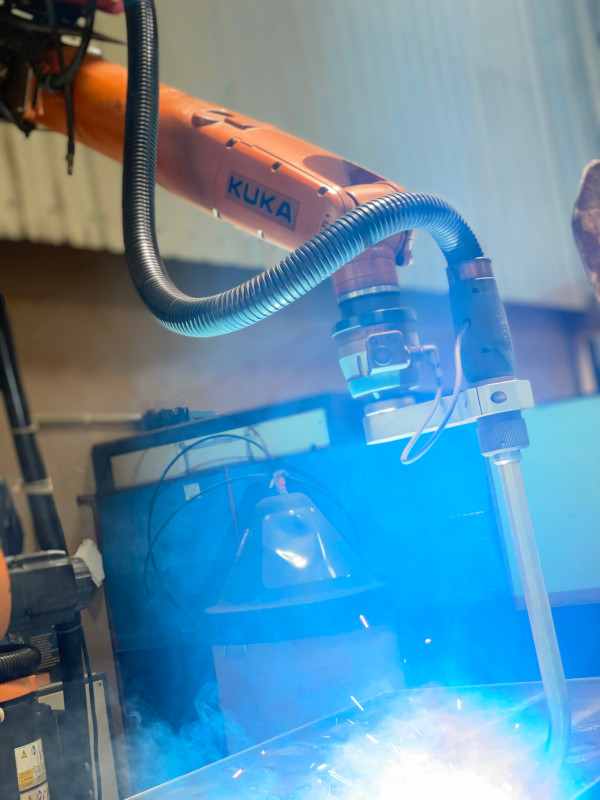

- 6 Axis Robotic Arm: Up to 2.4 m reach (KUKA)
- Longitudinal Seam Welding: 2,000 mm
- Welding Positioners: Up to 2,000 mm
- Vertical Welding Positioners: 3,000 x 3,000 mm
- Welding Power Source MIG & TIG (250 Amp to 630 Amp) (9 Nos.)
Make: Fronius, LORCH, ESAB, D&H
To gain loyalty through the design and manufacture of expansion joints for the domestic and international market, applying experience and innovation to achieve specialization.
To provide customised and reliable solutions to the client.
Quality is an essential requirement for manufacturing our products. Tremendous respect for our natural environment and for the people who are a part of SYSTEMFLEX.
Energy-efficient management systems, re-engineering processes focused on waste reduction and the use of environmentally friendly materials.
